The Vanguard

Lighted Mirrored Cabinet Collection

(Surface Mount)



2023 DPHA Product of the Year Winner

Following our tradition of Functional Elegance, Madeli is proud to introduce the surface mount Vanguard Mirrored Cabinet Collection. Our lighted perimeter frame is unique; it allows the door to operate independently while providing clear, consistent light. The exclusive Acrylens™ light diffuser offers three-directional lighting: frontal, side glow and interior lighting. Dimmable at the touch, the Lumen Touch +™ Switch Technology offers warm 2700 kelvin mood or daylight 4000 kelvin task lighting right at your fingertips. The independent, built-in defogger keeps your mirror moisture free. Complements include 120V and USB outlets, an adjustable magnifying mirror, cosmetic tray, cell phone holder, roll-up cord management, toothbrush, hand shaver, and tweezer accessories.

FEATURES AND BENEFITS

UNIQUE!

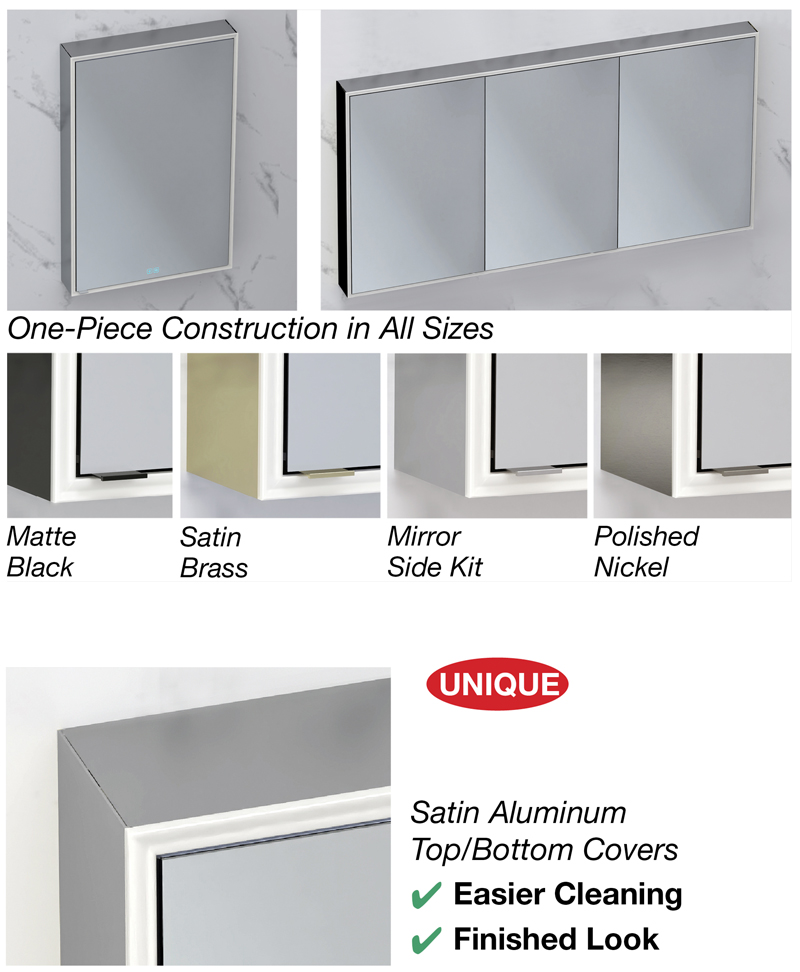

Exclusive Unibody Cabinet Construction Designed for Surface Mount

One-piece construction designed for surface mount with side kits in matching mirror, Matte Black or Satin Brass aluminum

The Vanguard Collection offers 19 configurations
30" Height in widths of: 20"(LH/RH), 24"(LH/RH), 30"(LH/RH)
36" Height in widths of: 20"(LH/RH), 24"(LH/RH), 30"(LH/RH) 36"(LH/RH), 48"(C), 48"(D), 60"(C), 60"(D), 72"(D)

UNIQUE!

Elegant, functional and easy to install without the need for modular installation. Both the top and bottom of the surface mount cabinets are enclosed with satin aluminum top/bottom covers for easier cleaning and a finished look

Exclusive Unibody Cabinet Construction
Designed for Surface Mount

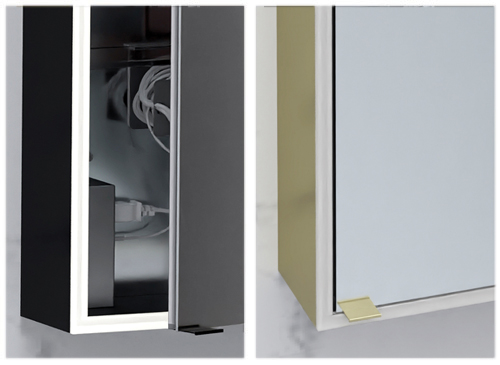

Perimeter Lighting

Built-in the cabinet frame for uniform lighting uninterrupted by the door position

Three copper-free mirrors (door front/back and interior rear) with GreenShield™ Protective backing and sealed edges to avoid potential black edges

Perimeter Lighting

UNIQUE!

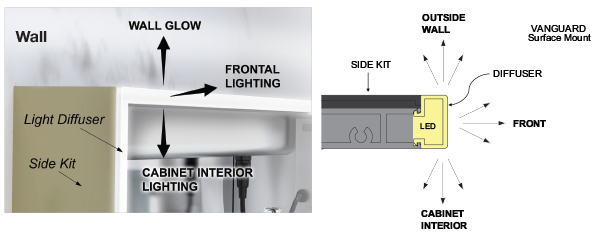

Acrylens™ three-direction Light Diffuser

Exclusive design and medium diffuse the lighting in three directions: Frontal, exterior Perimeter glow including cabinet underside lighting, and Perimeter Interior lighting from all sides for clear vision

Acrylens™ three-direction Light Diffuser

UNIQUE!

PureClear™ LEDs

PureClear™ LEDs offer the option of warm 2700 kelvin mood lighting or daylight 4000 kelvin task lighting setting with the color accuracy of high-quality CRI 90+ light sources. Mood or task lighting at your fingertips!

PureClear™ LEDs

Lumen Touch™ + Sensor Technology Switch—Built-in Dimmer and Digital Memory

Lumen Touch™+ allows you to dim the light to the right intensity. Double tap the light window to select the warm 2700 kelvin mood lighting ambiance or the daylight 4000 kelvin task setting. The built-in dimmer with its independent touch switch eliminates the need for wall dimmers. The built-in memory keeps your last settings in memory for ease of use

Light Switch Functions:

  1. Turns Night Blue Light on/off
  2. Turns light on/off.
  3. Dim light up/down.
  4. Double tap to toggle between 2700K or 4000K
Lumen Touch™ + Sensor Technology Switch—Built-in Dimmer and Digital Memory

Night Light Mode

UNIQUE!

Night Light Mode

Night light mode is available two ways: Dim the perimeter light band to the appropriate level or simply leave the switch windows on the blue glow setting. They have been designed for perfect night vision!

Built-in Defoggers

Built-in Defoggers

Defoggers—one per vanity basin—operate independently of the light with their own on/off switches to deliver fog free mirrors every time.

Dual Electrical Outlet With

Dual Electrical Outlet With

Two 120 VAC Receptacles and
Two USB Ports
Compact - Out of the way

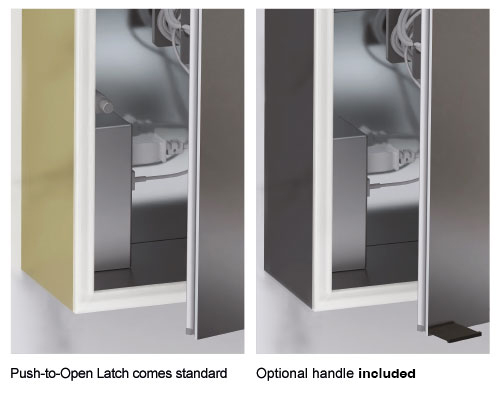

Door Opening & Closing

Soft-Close Hafele 110° hinges adjustable in 4 directions for smoothness and reliability. Push-to-Open Touch latches are standard on all cabinets for handle-free preference. Optional handle(s) matching recessed frame finishes are included and easy to install

Door Opening & Closing

StarFire Utra Clear Glass Shelves

Low Iron Ultra-Klear™ Glass Shelves

Three Low Iron Ultra-Klear™ glass shelves per compartment that can be adjusted every 2" for storage customization

Hafele Soft-Close Hinges

Hafele Soft-Close Hinges

Hinges open to 110° and are adjustable in 6 directions

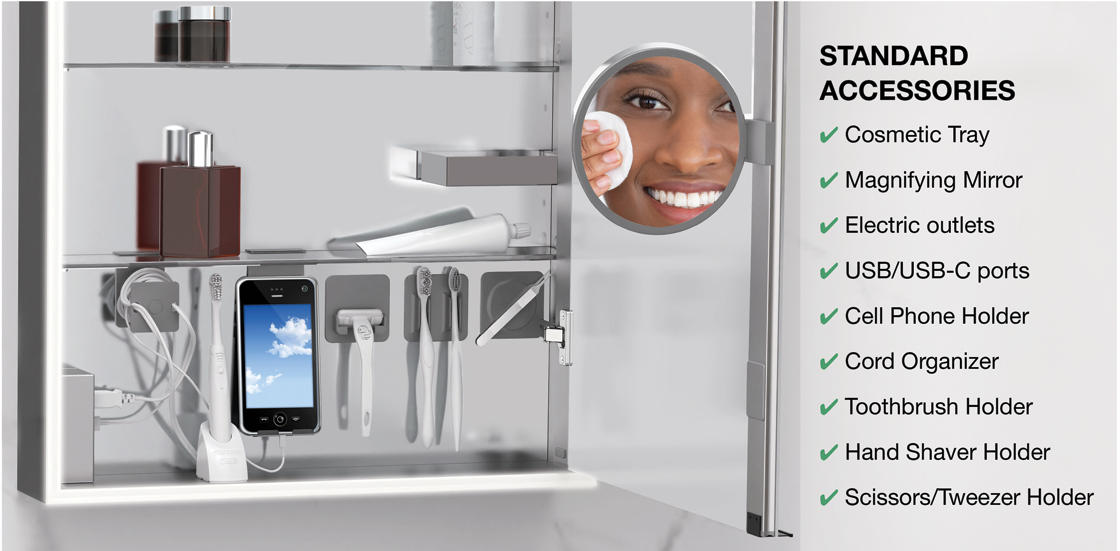

STANDARD ACCESSORIES

STANDARD ACCESSORIES
Magnifying Mirror

UNIQUE!

3X Magnifying Mirror

Held magnetically on side of doors
Adjustable to desired height
Fits all doors of multi door cabinets
Friction hinge holds mirror in any position and keeps it tight against back of door

Cord Management

UNIQUE!

Cord Management

Use the cord organizer to roll up cords of electric shavers, tooth brushes or curling irons. Slide it to your preferred position

Silicone Organizers

UNIQUE!

Silicone Organizers

Three silicone organizers that adhere to the rear mirror for hand shavers, toothbrushes, and metal scissors, tweezers, nail file…etc. Easy to hang or move

Cosmetic Tray

UNIQUE!

Cosmetic Tray

Removable cosmetic tray can be placed on the shelves or mounted on the cabinet side for customized functionality

Cell Phone Holder

UNIQUE!

Cell Phone Holder

Hanging from the shelf, the cell holder can be positioned as preferred

Certified to UL/ULC

Certified to UL/ULC

warranty

Lifetime Limited Warranty

Madeli’s mirror cabinets are backed by a lifetime limited warranty.
Complete peace of mind!
See Warranty details
