The Vanguard LIGHTED MIRRORED CABINET COLLECTION

(Surface Mount)

Available July 2022

Following our tradition of Functional Elegance, Madeli is proud to introduce the surface mount Vanguard Mirrored Cabinet Collection. Our lighted perimeter frame is unique; it allows the door to operate independently while providing clear, consistent light. The exclusive Acrylens™ light diffuser offers three-directional lighting: frontal, side glow and interior lighting. Dimmable at the touch, the Lumen Touch +™ Switch Technology offers warm 2700 kelvin mood or daylight 4000 kelvin task lighting right at your fingertips. The independent, built-in defogger keeps your mirror moisture free. Complements include 120V and USB outlets, an adjustable magnifying mirror, cosmetic tray, cell phone holder, roll-up cord management, toothbrush, hand shaver, and tweezer accessories.
Also Available as a Recess Mount Cabinet

Features and Benefits
  • Unibody Construction with side kits and top/bottom aluminum covers—No need for modular installation

  • 2700/4000 kelvin

  • Perimeter lighting in 3 directions: Frontal/Side/Interior

  • Defogger(s)

  • Built-in Dimmer

  • Built-in Digital Memory to save settings

  • 3 Starfire Ultra Clear adjustable glass shelves per compartment

  • Hafele 110° hinges adjustable in 3 directions

  • Door Opening: Standard Push-to-Open latch or Handle provided

  • 3X Magnifiying Mirror

  • Cord Organizer

  • Cosmetic Tray

  • Silicone organizers for hand shavers, tootbrushes and scissors/tweezers

  • Cell Phone Holder

  • 120VAC-60Hz-15A Receptacles & USB Ports

Side Kit and Handles in 3 Finishes
Matching Mirror Side Kit

Matching Mirror Side Kit

Satin Brass

Satin Brass
(SB)

Matte Black

Matte Black
(MB)


Download
Specifications, Installation and User's Guide
Available Sizes for the Vanguard Collection
(Surface Mount)
Model Size
WxHxD
Door Configuration
Left or Right Hinged Door
Defogger Electric Outlet
With 2 120V and USB Ports
MC-VA2030-SM-04-L00-XX 19" x 29" x 4.5" 1 Door: Left Hinged 1 1
MC-VA2030-SM-04-R00-XX 19" x 29" x 4.5" 1 Door: Right Hinged 1 1
MC-VA2036-SM-04-L00-XX 19" x 35" x 4.5" 1 Door: Left Hinged 1 1
MC-VA2036-SM-04-R00-XX 19" x 35" x 4.5" 1 Door: Right Hinged 1 1
MC-VA2430-SM-04-L00-XX 23" x 29" x 4.5" 1 Door: Left Hinged 1 1
MC-VA2430-SM-04-R00-XX 23" x 29" x 4.5" 1 Door: Right Hinged 1 1
MC-VA2436-SM-04-L00-XX 23" x 35" x 4.5" 1 Door: Left Hinged 1 1
MC-VA2436-SM-04-R00-XX 23" x 35" x 4.5" 1 Door: Right Hinged 1 1
MC-VA3030-SM-04-L00-XX 29" x 29" x 4.5" 1 Door: Left Hinged 1 1
MC-VA3030-SM-04-R00-XX 29" x 29" x 4.5" 1 Door: Right Hinged 1 1
MC-VA3036-SM-04-L00-XX 29" x 35" x 4.5" 1 Door: Left Hinged 1 1
MC-VA3036-SM-04-R00-XX 29" x 35" x 4.5" 1 Door: Right Hinged 1 1
MC-VA3636L-SM-04-L24-XX 35" x 35" x 4.5" 2 Doors: 24" L / 12" R 1 1
MC-VA3636R-SM-04-R24-XX 35" x 35" x 4.5" 2 Doors: 12" L / 24" R 1 1
MC-VA4836D-SM-04-000-XX 47" x 35" x 4.5" 2 Doors: 24" L / 24" R 2 2
MC-VA4836C-SM-04-000-XX 47" x 35" x 4.5" 3 Doors: 12" L / 24" L / 12" R 1 1
MC-VA6036D-SM-04-000-XX 59" x 35" x 4.5" 3 Doors: 24" L / 12" L / 24" R 2 2
MC-VA6036C-SM-04-000-XX 59" x 35" x 4.5" 3 Doors: 18" L / 24" L / 18" R 1 1
MC-VA7236D-SM-04-000-XX 71" x 35" x 4.5" 3 Doors: 24" L / 24" L / 24" R 2 2

MC-VA2030-SM-04-L00-XX
MC-VA2030-SM-04-R00-XX
19" x 29" x 4.5"

MC-VA2036-SM-04-L00-XX
MC-VA2036-SM-04-R00-XX
19" x 35" x 4.5"

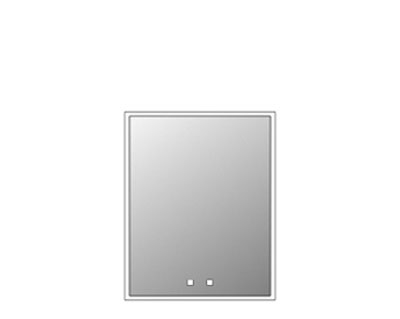

MC-VA2430-SM-04-L00-XX
MC-VA2430-SM-04-R00-XX
23" x 29" x 4.5"

MC-VA2436-SM-04-L00-XX
MC-VA2436-SM-04-R00-XX
23" x 35" x 4.5"

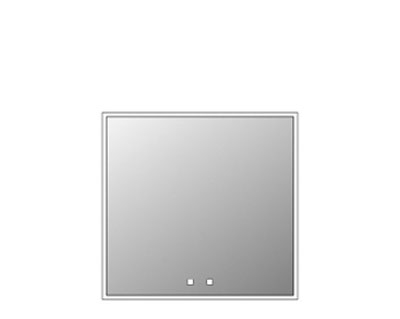

MC-VA3030-SM-04-L00-XX
MC-VA3030-SM-04-R00-XX
29" x 29" x 4.5"

MC-VA3036-SM-04-L00-XX
MC-VA3036-SM-04-R00-XX
29" x 35" x 4.5"

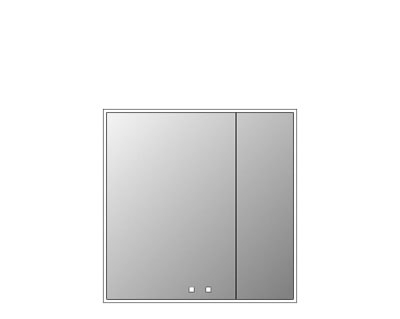

MC-VA3636L-SM-04-L24-XX
35" x 35" x 4.5"

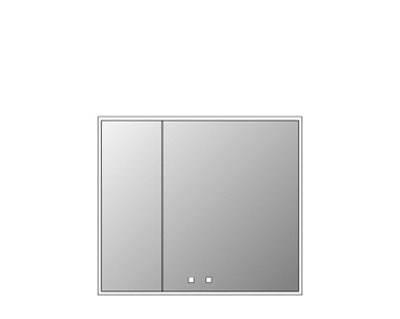

MC-VA3636R-SM-04-R24-XX
35" x 35" x 4.5"

MC-VA4836D-SM-04-000-XX
47" x 35" x 4.5"

MC-VA4836C-SM-04-000-XX
47" x 35" x 4.5"

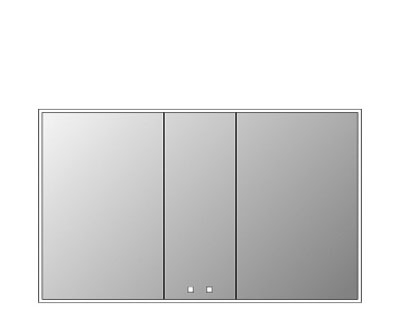

MC-VA6036D-SM-04-000-XX
59" x 35" x 4.5"

MC-VA6036C-SM-04-000-XX
59" x 35" x 4.5"

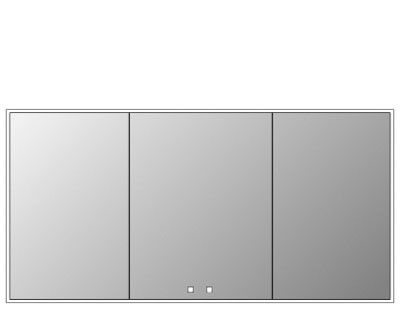

MC-VA7236D-SM-04-000-XX
71" x 35" x 4.5"
