The Illusion LIGHTED MIRRORED CABINET COLLECTION

(Recessed Mount)

Following our tradition of Functional Elegance, Madeli is proud to introduce the recessed mount Illusion Mirrored Cabinet Collection. Our lighted perimeter frame is unique; it allows the door to operate independently while providing clear, consistent light. The exclusive Acrylens™ light diffuser offers three-directional lighting: frontal, side glow and interior lighting. Dimmable at the touch, the Lumen Touch +™ Switch Technology offers warm 2700 kelvin mood or daylight 4000 kelvin task lighting right at your fingertips. The independent, built-in defogger keeps your mirror moisture free. Complements include 120V and USB outlets, an adjustable magnifying mirror, cosmetic tray, cell phone holder, roll-up cord management, toothbrush, hand shaver, and tweezer accessories.
Also Available as a Surface Mount Cabinet

Features and Benefits

  • Unibody Construction with pre-installed low profile accent frame in four finishes—No need for modular installation

  • 2700/4000 kelvin

  • Perimeter lighting in 3 directions: Frontal/Side/Interior

  • Defogger(s)

  • Built-in Dimmer

  • Built-in Digital Memory to save settings

  • Low Iron Ultra-Klear™ adjustable glass shelves per compartment

  • Hafele 110° hinges adjustable in 3 directions

  • Three copper-free mirrors with GreenShield™ Protective sealed edges

  • Door Opening: Standard Push-to-Open latch or Handle provided

  • 3X Magnifiying Mirror

  • Cord Organizer

  • Cosmetic Tray

  • Silicone organizers for hand shavers, toothbrushes and scissors/tweezers

  • Cell Phone Holder

  • 120VAC-60Hz-15A Receptacles & USB Ports

Frames and Handles in 4 Finishes
Polished Chrome

Polished Chrome
(PC)

Brushed Nickel

Brushed Nickel
(BN)

Satin Brass

Satin Brass
(SB)

Matte Black

Matte Black
(MB)


Download
Specifications, Installation and User's Guide
Available Sizes for the Illusion Collection
(Reccessed Mount)
Model Size
WxHxD		 Door Configuration
Left or Right Hinged Door		 Defogger Electric Outlet
With 2 120V and USB Ports
MC-IL2030-RM-04-L00-XX 20" x 30" x 4.5" 1 Door: Left Hinged 1 1
MC-IL2030-RM-04-R00-XX 20" x 30" x 4.5" 1 Door: Right Hinged 1 1
MC-IL2036-RM-04-L00-XX 20" x 36" x 4.5" 1 Door: Left Hinged 1 1
MC-IL2036-RM-04-R00-XX 20" x 36" x 4.5" 1 Door: Right Hinged 1 1

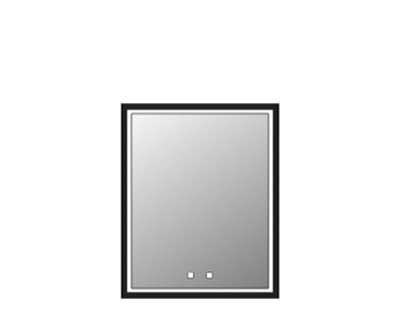

MC-IL2430-RM-04-L00-XX 24" x 30" x 4.5" 1 Door: Left Hinged 1 1
MC-IL2430-RM-04-R00-XX 24" x 30" x 4.5" 1 Door: Right Hinged 1 1
MC-IL2436-RM-04-L00-XX 24" x 36" x 4.5" 1 Door: Left Hinged 1 1
MC-IL2436-RM-04-R00-XX 24" x 36" x 4.5" 1 Door: Right Hinged 1 1
MC-IL3030-RM-04-L00-XX 30" x 30" x 4.5" 1 Door: Left Hinged 1 1
MC-IL3030-RM-04-R00-XX 30" x 30" x 4.5" 1 Door: Right Hinged 1 1
MC-IL3036-RM-04-L00-XX 30" x 36" x 4.5" 1 Door: Left Hinged 1 1
MC-IL3036-RM-04-R00-XX 30" x 36" x 4.5" 1 Door: Right Hinged 1 1
MC-IL3636L-RM-04-L24-XX 36" x 36" x 4.5" 2 Doors: 24" L / 12" R 1 1

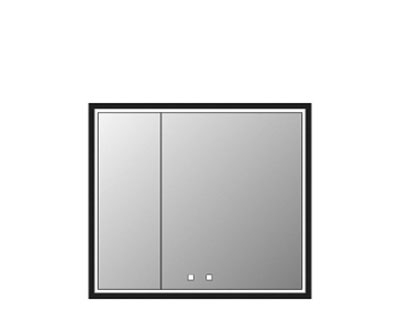

MC-IL3636R-RM-04-R24-XX 36" x 36" x 4.5" 2 Doors: 12" L / 24" R 1 1
MC-IL4836D-RM-04-000-XX 48" x 36" x 4.5" 2 Doors: 24" L / 24" R 2 2
MC-IL4836C-RM-04-000-XX 48" x 36" x 4.5" 3 Doors: 12" L / 24" L / 12" R 1 1
MC-IL6036D-RM-04-000-XX 60" x 36" x 4.5" 3 Doors: 24" L / 12" L / 24" R 2 2

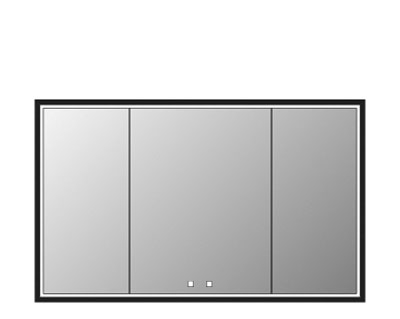

MC-IL6036C-RM-04-000-XX 60" x 36" x 4.5" 3 Doors: 18" L / 24" L / 18" R 1 1
MC-IL7236D-RM-04-000-XX 72" x 36" x 4.5" 3 Doors: 24" L / 24" L / 24" R 2 2

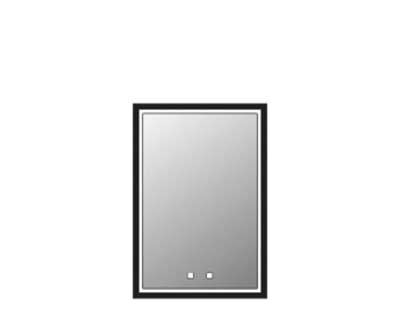

MC-IL2030-RM-04-L00-XX
MC-IL2030-RM-04-R00-XX
20" x 30" x 4.5"

MC-IL2036-RM-04-L00-XX
MC-IL2036-RM-04-R00-XX
20" x 36" x 4.5"

MC-IL2430-RM-04-L00-XX
MC-IL2430-RM-04-R00-XX
24" x 30" x 4.5"

MC-IL2436-RM-04-L00-XX
MC-IL2436-RM-04-R00-XX
24" x 36" x 4.5"

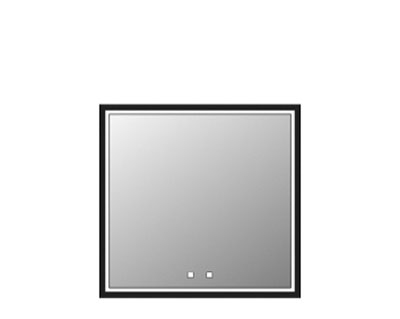

MC-IL3030-RM-04-L00-XX
MC-IL3030-RM-04-R00-XX
30" x 30" x 4.5"

MC-IL3036-RM-04-L00-XX
MC-IL3036-RM-04-R00-XX
30" x 36" x 4.5"

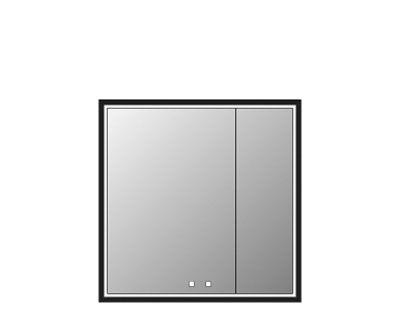

MC-IL3636L-RM-04-L24-XX
36" x 36" x 4.5"

MC-IL3636R-RM-04-R24-XX
36" x 36" x 4.5"

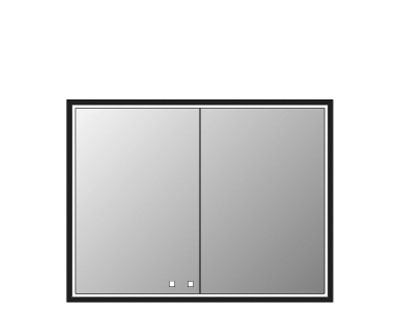

MC-IL4836D-RM-04-000-XX
48" x 36" x 4.5"

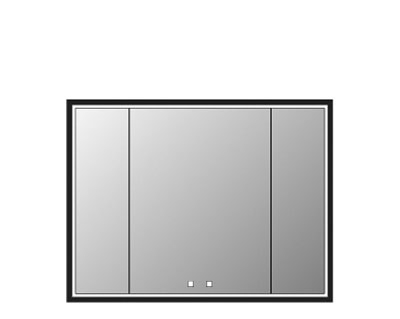

MC-IL4836C-RM-04-000-XX
48" x 36" x 4.5"

MC-IL6036D-RM-04-000-XX
60" x 36" x 4.5"

MC-IL6036C-RM-04-000-XX
60" x 36" x 4.5"

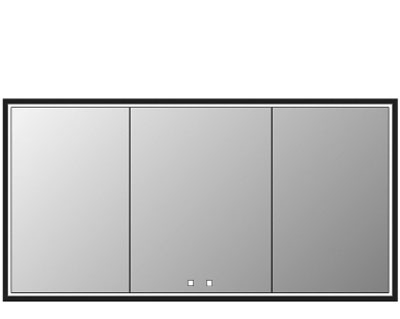

MC-IL7236D-RM-04-000-XX
72" x 36" x 4.5"
